Applied material: gold ore, limestone, copper, quartz, chrome, silica sand, slag, gypsum, iron ore, feldspar, clinker, coal, manganese, etc.
Ball mill is suitable for grinding mineral ores, stones and other materials to powder or particles types. It is widely used in non-ferrous metal mining, non-metallic mining, cement, the chemical industry, coal, silicate products, and glass, cement, ore beneficiaiton plant, etc.
Grinding materials: ① Metal ores such as gold ore, copper ore, iron ore, chrome ore, lead, nickel, etc. ②Other materials: quartz, silica sand, feldspar, limestone, marble, zircon sand, cement clinker, slag, cola , graphite, gypsum, dolomite, etc.
Feeding and Discharge size: The general feed size requirement is less than 25mm, if larger a crusher is needed. The finished product fineness range is 80-200 mesh (75micron, 45 micron, 0.074mm). The finest is up to 300 or 500 mesh, etc.
Hot Sale Capacity: Small capacity 1tph, 3 ton per hour, 5 tph, etc. Medium and Large capacity 10 tph, 70 tph, 150 tph, etc.
According to process usage conditions: ①Dry ball mill: Grind materials into required mineral powder. Dry ball mill is generally used for grinding hard materials, such as quartz grinding powder, cement grinding powder, etc. ②Wet ball mill: Grind materials into slurry of a certain concentration. Wet ball mills are generally used in the beneficiation of various minerals.
According to the varying process materials, grinding ball mill can be divided into the following types: gold ore ball mill, quartz ball mill, iron copper minerals ball mill, tin ore ball mill, limestone ball mill, garnet ball mill, cement ball mill, fluorite ball mill, feldspar ball mill, etc..

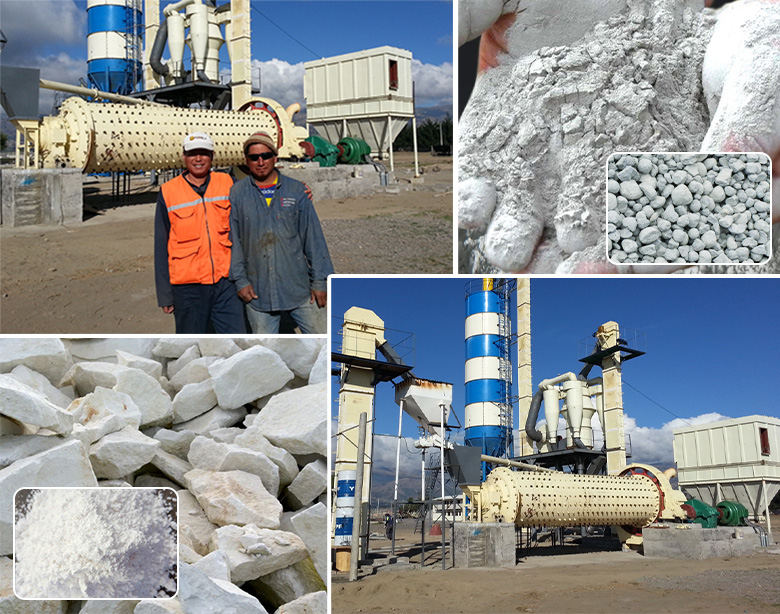

Mr. Jayakody has a limestone quarry. He searched the limestone ball mill on Google and found my website. After discussing with engineers, my salesman choose a mode Ф2400×3000 ball mill for him. After visiting our factory and comparing prices and various factors, he chose FTM's ball mill finally.
Customer Feedback: Our ball mill has been running for 11 months. We went to China and visited the FTM company on zhengzhou city before purchasing. There are three factories with large scale, which increased our purchasing confidence. We are quite satisfied with this milling machine.
1.The production process is strictly controlled, and only products that pass inspection can leave the factory.
2.We provide you with solutions, model introduction, quotation, and process design.
3.Deliver machines strictly on time.
4.We provide parts and after-sales guarantee.
We provide you with different ball milling solutions to save your costs according to your materials hardness, capacity and output size. Hot Sale capacity such as Ф1200×2400, Ф900×1800, Ф2200×4500. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
You are welcome to inquire about the ball mill by chatting with online service or leave your whatsapp/ email on our website. We will contact you within 24hours after receiving your inquiry. You can arrange to visit our factory at any time.
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.
| Model | Shell rotation speed （r/min） |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Total weight (t) |
| Ф900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Ф900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Ф1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Ф1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Ф1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Ф1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Ф2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Ф2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Ф2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Ф2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| Ф2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 22-80 | 380 | 95 |
| Ф2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 26-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | <25 | 0.074-0.4 | As per process conditions | 630 | 149 |
| Ф3600×4500 | 17 | 90 | <25 | 0.074-0.4 | As per process conditions | 850 | 169 |
| Ф3600×6000 | 17 | 110 | <25 | 0.074-0.4 | As per process conditions | 1250 | 198 |
| Ф3600×8500 | 18 | 131 | <25 | 0.074-0.4 | 45.8-256 | 1800 | 260 |
| Ф4000×5000 | 16.9 | 121 | <25 | 0.074-0.4 | 45-208 | 1500 | 230 |
| Ф4000×6000 | 16.9 | 146 | <25 | 0.074-0.4 | 65-248 | 1600 | 242 |
| Ф4000×6700 | 16.9 | 149 | <25 | 0.074-0.4 | 75-252 | 1800 | 249 |
| Ф4500×6400 | 15.6 | 172 | <25 | 0.074-0.4 | 84-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | <25 | 0.074-0.4 | 98-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | <25 | 0.074-0.4 | 118-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | <25 | 0.074-0.4 | 148-615 | 4500 | 525 |
| Model | Feeding size (mm) |
Capacity (t/h) |
| Ф900×1800 | <20 | 0.65-2 |
| Ф900×3000 | <20 | 1.1-3.5 |
| Ф1200×2400 | <25 | 1.5-4.8 |
| Ф1200×3000 | <25 | 1.6-5 |
| Ф1200×4500 | <25 | 1.6-5.8 |
| Ф1500×3000 | <25 | 2-5 |
| Ф1500×4500 | <25 | 3-6 |
| Ф1500×5700 | <25 | 3.5-6 |
| Ф1830×3000 | <25 | 4-10 |
| Ф1830×4500 | <25 | 4.5-12 |
| Ф1830×6400 | <25 | 6.5-15 |
| Ф1830×7000 | <25 | 7.5-17 |
| Ф2100×3000 | <25 | 6.5-36 |
| Ф2100×4500 | <25 | 8-43 |
| Ф2100×7000 | <25 | 12-48 |
| Ф2200×4500 | <25 | 9-45 |
| Ф2200×6500 | <25 | 14-26 |
| Ф2200×7000 | <25 | 15-28 |
| Ф2200×7500 | <25 | 15-30 |
| Ф2400×3000 | <25 | 7-50 |
| Ф2400×4500 | <25 | 8.5-60 |
| Ф2700×4000 | <25 | 22-80 |
| Ф2700×4500 | <25 | 26-90 |
| Ф3200×4500 | <25 | As per process conditions |
| Ф3600×4500 | <25 | As per process conditions |
| Ф3600×6000 | <25 | As per process conditions |
| Ф3600×8500 | <25 | 45.8-256 |
| Ф4000×5000 | <25 | 45-208 |
| Ф4000×6000 | <25 | 65-248 |
| Ф4000×6700 | <25 | 75-252 |
| Ф4500×6400 | <25 | 84-306 |
| Ф5030×6400 | <25 | 98-386 |
| Ф5030×8300 | <25 | 118-500 |
| Ф5500×8500 | <25 | 148-615 |
