Finished product size: 0.015-0.25mm
Diameter of pulverizing ring: 908×160-2040×320mm
HGM series fine grinding mill is developed and improved based on the property of traditional grinding mill. According to the customers' feedback opinions and the grinding practical situation at home and abroad, the inner structure, appearance design and welding technology of the HGM series fine grinding mill are all innovated and improved. Nowadays the HGM series fine grinding mill has been one of the best-selling grinding equipment on the grinding market.

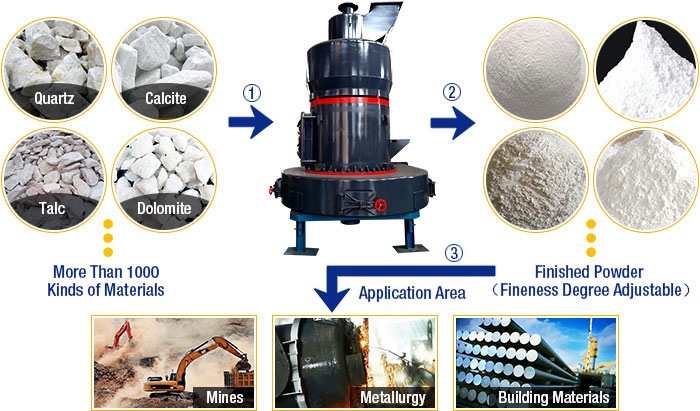

With diversified and convenient adjustment ways, finished fineness of the HGM series fine grinding mill can be discretionarily adjusted from 0.18mm (80 meshes) -0.015mm (800 meshes). HGM series fine grinding mill is widely used in the metallurgy, building materials, chemical and mining industries for grinding mining materials such as talc, barite, fluorite, quartz, feldspar, calcite, rare earth, activated carbon, ceramic, aluminium, vanadium soil, cement clinker, dolomite, marble, granite, feldspar, granite and rock phosphate, etc. Fote machinery can configure proper model HGM series fine grinding mill for different customers in accordance with daily running time, daily production capacity, different granularity and budget.
1. Wide application range, high adaptive capacity and strong grinding capacity regardless of materials and working sites;
2. Convenient maintain, long maintain period, new-type sealing device and advanced structure;
3. Advanced impulse dust pelletizing system and convenient automatic detection and ash removal.
4. Spring pressure device, strong grinding power and high handling capacity.
Fote machinery develops multi models HGM series fine grinding mill with different costs and price. To be sure, HGM series fine grinding mill of Fote machinery has the most reasonable and affordable price. You can consult our online servicer for more equipment details and our engineer will configure proper HGM series fine grinding mill according to your individual process need.
Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:
High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.
| Model | HGM88 | HGM95 | HGM 100 | HGM120 | HGM130 | HGM138 | HGM160 | HGM175 | HGM190 |
| Feeding size（mm） | ＜20 | ＜25 | ＜25 | ＜25 | ＜25 | ＜25 | ＜30 | ＜35 | <40 |
| Finished product size（mm） | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.038 | 0.25-0.038 | 0.25-0.038 | 0.25-0.038 | 0.25-0.038 |
| Processing capacity（t/h） | 0.4-5 | 0.6-7 | 0.8-10 | 1.2-15 | 1.6-21 | 2-25 | 2.7-28 | 3-35 | 5-40 |
| Central shaft rotate speed（r.min） | 167 | 150 | 142 | 136 | 105 | 92.5 | 82 | 75 | 74 |
| Diameter of pulverizing ring（mm） | 908 | 1006 | 1075 | 1280 | 1400 | 1510 | 1770 | 1900 | 2040 |
| Number Of pulverizing roller | 3 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | 4 |
| Main motor power（kw） | 22 | 30 | 45 | 55 | 75 | 90 | 132 | 185 | 280 |
| Fan motor power（kw） | 22 | 30 | 45 | 75 | 90 | 110 | 160 | 200 | 280 |
| Analyzer motor power（kw） | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22/30 | 30/45 | 55 |
| Model | Feeding size （mm） |
Processing capacity （t/h） |
| HGM88 | ＜20 | 0.4-5 |
| HGM95 | ＜25 | 0.6-7 |
| HGM 100 | ＜25 | 0.8-10 |
| HGM120 | ＜25 | 1.2-15 |
| HGM130 | ＜25 | 1.6-21 |
| HGM138 | ＜25 | 2-25 |
| HGM160 | ＜30 | 2.7-28 |
| HGM175 | ＜35 | 3-35 |
| HGM190 | <40 | 5-40 |
