Impact Crusher

Impact Crusher

Online Service Connection < 60s, Email Reply Time < 24h

Processing capacity: 30-800t/h

Feeding size: 300-800mm

Applied material:limestone, granite, coal, slag, clay, etc.

Impact Crusher Working Video

The Handling Materials and Application of Impact Crusher:

Impact crusher is used for the secondary crushing process of the whole crushing production line. Large-scale impact crushing machine is also available for the coarse crushing. The secondary impact crusher is widely used in the railway, highway, hydropower, construction materials and other industry fields for crushing materials whose length is less than 500mm and compressive strength is less than 350 MPa, such as iron ore, bluestone, construction waste, gangue, quartz, calcite, limestone, cement concrete granite, etc.

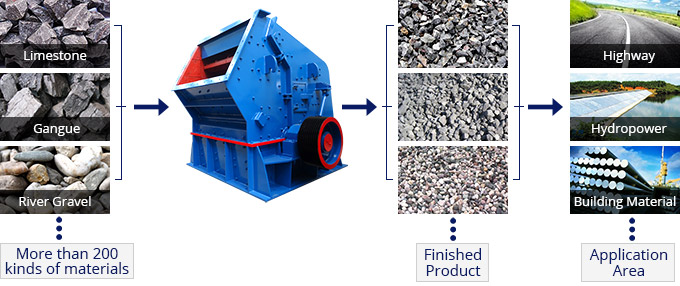

Impact Crusher Processing Material

Property Superiorities of the Impact Stone Crusher

1. Effective dealt with the material of high moisture content and prevention against the feed blocking can guarantee the energy conservation and environment protection of the impact crusher.

2. Without too much limitation on the material, the impact crushing machine can dispose different rigidity material.

3. Particle size adjustment is flexible. Any particle size is available just by adjustment of the rotor speed. The operation of the impact crushing machine is simple and easily understood.

4. Little abrasion of its vulnerable component reduces the repair process, improving the production efficiency and strengthening the economic benefits of the impact crusher manufacturers.

5. The perfect after-sale service of Fote machinery can extend the equipment usage life. Fote machinery escorts for the long term usage of you equipment.

Fote Impact Crusher

Large-scale Impact Crusher

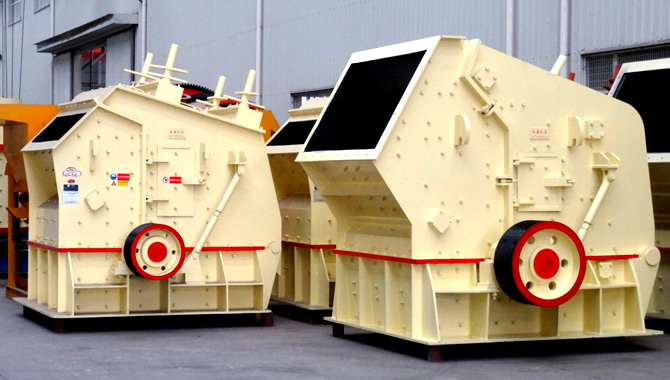

With the height of 3-4 meters, the large-scale secondary impact crusher has the production capacity of 800 tons one hour. Pictures of the large- scale impact crushing machine are as follows:

Impact Crusher

Impact Crusher Price

The price of the impact crusher is not only affected by inner factors, such as quality and property, but also external factor, such as manufacturers, market demand and region. Therefore, besides the price, we need pay attention to the property, structure, crushing effect and other aspects when choose impact crushing machinery. The impact stone crusher produced by Fote machinery has the superior quality, perfect service and affordable price. With the 80000RMB cheaper price, the impact crushing machine of Fote machinery is the highest cost performance impact crushing equipment in the current market.

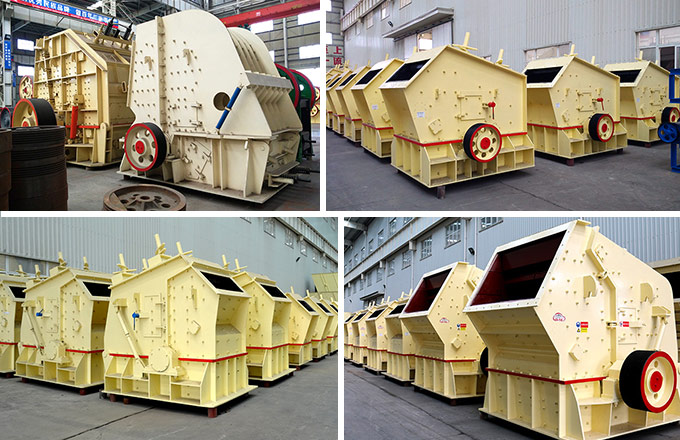

Impact Crusher Production Site

Nowadays, relying on its unique property, superior quality and price advantage, the secondary impact crusher of Fote machinery has been popular around the world and been strongly favored by many foreign countries such as India, Turkey, Nigeria and Thailand. Impact crusher of Fote machinery also lives up to expectations and brings great economic efficiency to our customers.

Contact us

Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:

High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.

info@sinoftm.com

Technical Data

Model Feed  Opening (mm) Max.Feeding Size (mm) Capacity (t/h)
PF-1007 400×730 300 30-70
PF-1010 400×1080 350 50-90
PF-1210 400×1080 350 70-130
PF-1214 400×1430 350 80-180
PF-1315 860×1520 500 100-280
PF-1320 993×20000 500 140-380
PF-1520 830×2040 700 200-550
PF-1820 1260×2040 800 300-800

Our Customer

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
