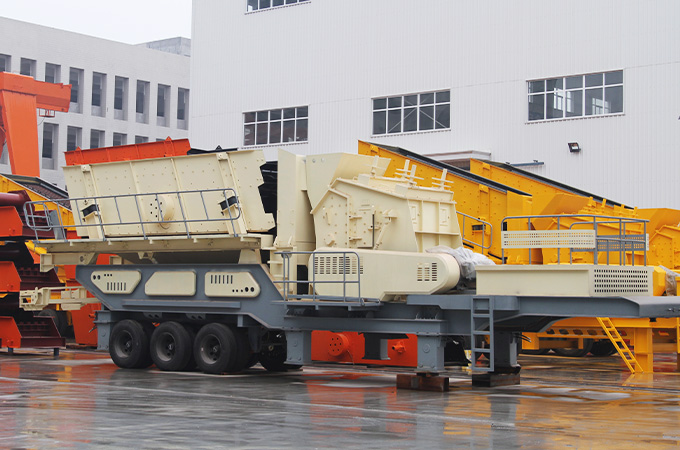

Mobile Impact Crusher

Mobile Impact Crusher

Online Service Connection < 60s, Email Reply Time < 24h

Processing capacity: 30-250t/h

Feeding size: 300-700mm

Applied material: river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings.

Mobile Impact Crusher Working Video

Introduction of Mobile Impact Crusher:

Mobile impact crusher adopts the PF series impact crusher which is the cone product of Fote Machinery as the main crushing machine. The PF series impact crusher superiorities of latest manufacturing technology, good quality high-chromium plate hammer, wear-resisting impact liner plate and large crushing ratio and the common impact crusher feature of perfect finished production grain shape are conductive to the wider usage range of this set of portable stone impact crushing plant.

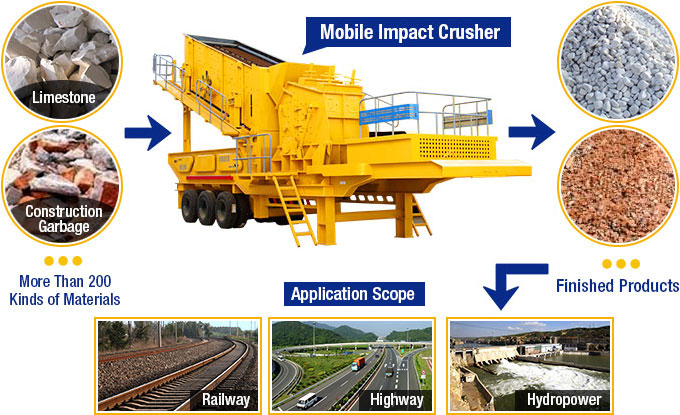

Mobile Impact Crusher Products and Applications

Mobile Impact Crusher Characteristics

Characteristics of mobile impact crusher include: large crushing capacity, economical intermediate crushing, strong adaptability, effective crushing and screening processing and self-contained conveyor.

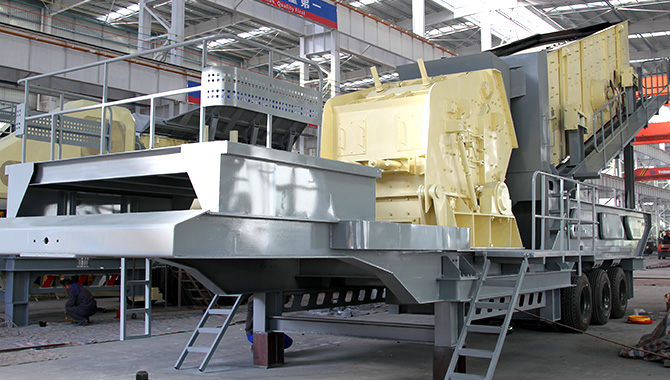

Structure and Composition

Portable stone impact crushing plant mainly consists of feeding system, centralized control and monitoring system, crushing system and so on.

Mobile Impact Crusher

Application Scope of Portable Impact Crusher

Portable impact stone crusher is mainly used in metallurgical, chemical, building materials, water-power engineering and other industry for processing removal materials, especially suitable for the highway, railway, and hydropower projects for removal stone materials crushing operation. At the same time, customers can choose different configuration options according to specific type of raw materials, scale and finished materials.

Mobile Impact Crusher Advantage

Mobile Impact Crusher------Crushing Expert Walking on the Road

Mobile impact crusher applies to situations that accumulation of construction garbage is not much concentrated and it is divided into several disposals regional. Mobile impact crusher gives full play to double advantages that impact crusher has high crushing ratio and mobile station can produce freely, reducing the concerns of equipment repeated purchase. Called as crushing expert walking on the road, portable stone impact crushing plant realizes the combination of crushing and screening equipment by its reasonable design. Vehicle system or track drive system achieves the overall mobile operation functions. What's more, flexible choice of construction sites largely decrease materials transport and processing costs.

Mobile Impact Crusher Production Site

Extended Functions

Interchange System of Impact Crusher and Cone Crusher

Interchange System of Impact Crusher and Cone Crusher

What you need invest is just the single equipment cost. In a short time, it realizes the interchange of different crushing units in the mining working site. The perfect match between the whole systems, wider application ranges and more comprehensive crushing functions all maximize the customers' benefits.

There is portable stone impact crushing plant for sale in Fote Machinery. To get the latest price list, please send an email to info@sinoftm.com

Contact us

Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:

High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.

info@sinoftm.com

Technical Data

Model FTM938F1210 and FTM938F1214 and FTM1149F1315

Model FTM938F1210 FTM938F1214 FTM1149F1315
Transportation length(mm) 12000 12000 13900
Transportation Width(mm) 2550 2550 2900
Transportation Height(mm) 3900 3900 4450
Maximum Length(mm) 12500 12500 13900
Maximum Width(mm) 3250 3260 3250
Maximum Height(mm) 5100 5200 5200
Weight(t) 39 44 54
Impact crusher PE-1210 PE-1214 PF-1315
Maximum Feeding Size(mm) 350 350 500
Capacity(t/h) 70-130 100-180 130-250
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m
Gensrt(optional) 320KW 320KW 400KW
iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10

Model FTM938F1110 and FTM1349F1315

Model FTM938F1110 FTM1349F1315
Transportation length(mm) 15450 15450
Transportation Width(mm) 2950 2950
Transportation Height(mm) 4500 4500
Maximum Length(mm) 15450 15450
Maximum Width(mm) 3250 3250
Maximum Height(mm) 5200 5200
Weight(t) 62 62
Impact crusher HD1110 HD1315
Maximum Feeding Size(mm) 400 700
Capacity(t/h) 112 280
Vibrating Feeder ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×11M B1200×11M
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-12

Our Customer

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
