Our engineer can customize specific solutions according to your requirements.
Processing capacity: 0.2~8 m³/min (1-150 tph)
Applied material: Copper, Iron, Gold, Sliver, Zinc, Tin, Lead, Chrome ore, Nickel, Manganese, Tin Ore, etc.
Main equipment: Jaw crusher, impact crusher, hammer crusher, flotation machine, classifier, ball mill, concentrator, etc.
Ore processing plant means that extracts and purifies some elements in the raw ore through a series of complex ore beneficiation flow and professional beneficiation equipment to improve the ore grade of useful minerals. It is used for crushing, grinding, separating, washing, extracting, upgrading mineras ors and geting ore concentraction in ore dressing industry.
Ore processing plant is divided into magnetic separation, flotation separation and gravity concentration.
Flotation seperation process is mainly used to select metal minerals such as gold, silver, copper, lead, zinc, nickel. It can also be used for the selection of ferrous and non-metallic (such as graphite).
Magnetic seperation is usded for wet magnetic separation of iron ore, magnetite, pyrrhotite, ilmenite, silica sand, with particle size under 3mm.
Gravity sepetation is suitable for the placer alluvial gold ore, rock gold, gold quartz ore, tin ore, chrome ore, managanese ore.
We suppply iron ore beneficiation plant, copper ore processing plant, gold ore processing plant, manganese ore separation plant, lead-zinc ore separation plant, phosphate processing plant, tin ore processing plant, silica sand processing plant, chrome ore beneficiation plant, nickel ore processing plant, etc.
We can customized ore processing plant accoding to your mineral size, grade and budget cost, which will save your costs and maximize your benefits.

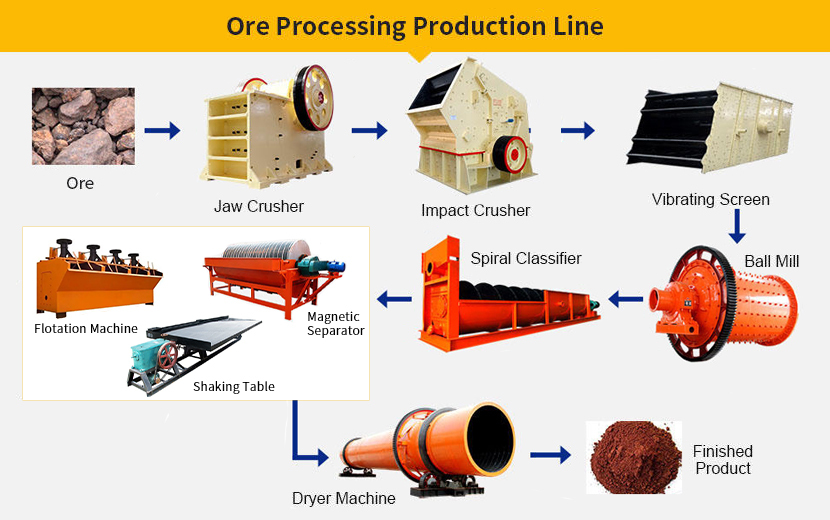

1. Mining ore will be sent to the jaw crusher for initial crushing by ore feeder. After the coarse crushed by cone crusher to a reasonable fineness, materials are uniformly sent to ball mill by elevator and ore feeder for crushing and grinding.
2. Grinded ores are sent to screener that will clean and classify the mixed ore according to the principle of different liquid precipitation rate of varying solid particles gravity.
3. Due to different magnetization coefficient of minerals, the magnetic material of cleaned and screened mineral mixture will be separated by the magnetic and mechanical force in the magnetic separator.
4. Mineral particles initially separated by the magnetic separation will be sent into the flotation machine. Adding different drugs to ores with different properties to separate the desired minerals and other substances
5. Because of the large quantity of moisture in the desired minerals, we need use thickener for primary concentration and use dyer to stoving them. Through the above-mentioned flows, the dry minerals are gained.

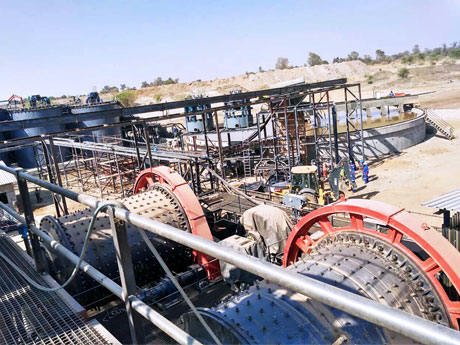

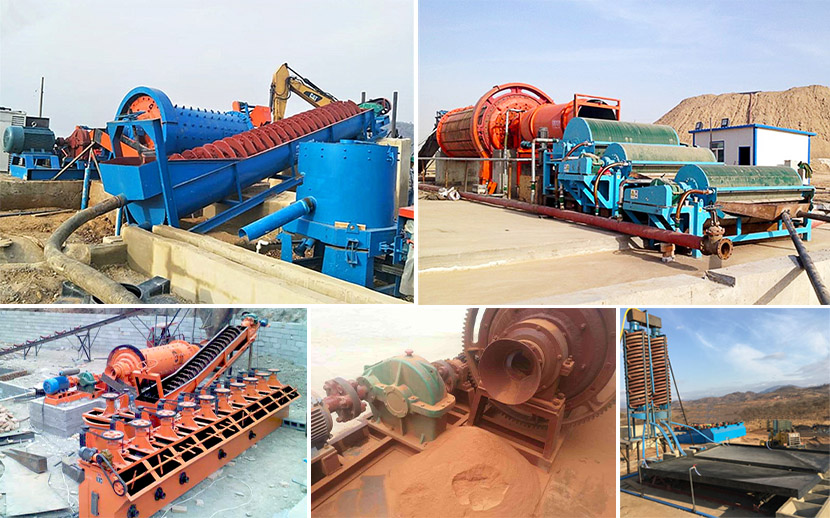

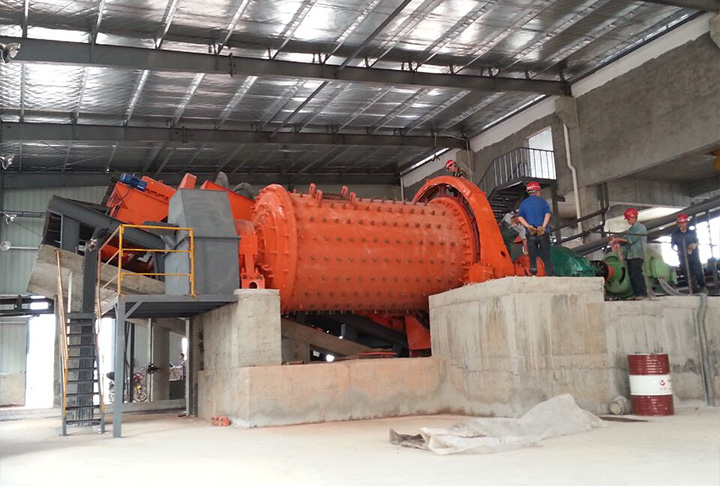

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
Processing Materials: Natural Gold
Production Capacity: 1200T/D
VIEW MOREProcessing Materials: Gold
Production Capacity: 700t/d
VIEW MOREWhatever your requirements, you 'll find the perfect service-oriented solution to match your specific needs with our help.
