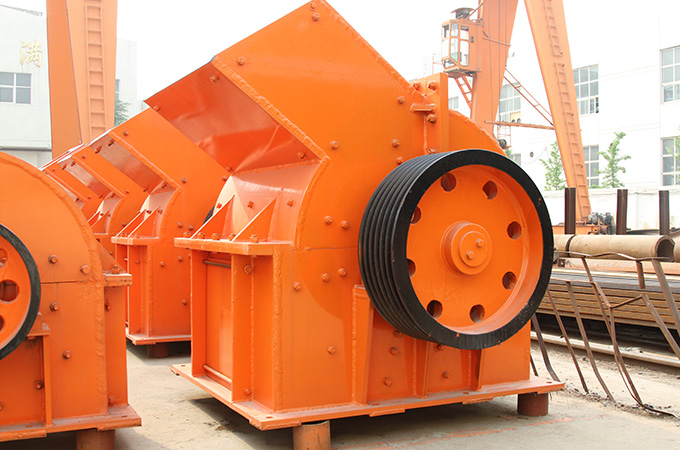

Hammer Crusher

Hammer Crusher

Online Service Connection < 60s, Email Reply Time < 24h

Processing capacity: 5–150m3/h

Feeding size: ≤350mm

Motor power: 4P 11–8P 90kw

Hammer Crusher Working Video

Introduction of Hammer Crusher:

With the impact effect to crush materials, the hammer crusher is widely used in the mining, cement, coal, metallurgy, building material, highway and burning industries for crushing materials with the medium hardness and brittle property. The grate gap of hammer crusher can be adjusted according to different particle size requirements of users. Hammer crushing machine can be divided into 2 types: heavy hammer crusher and ring hammer crusher.

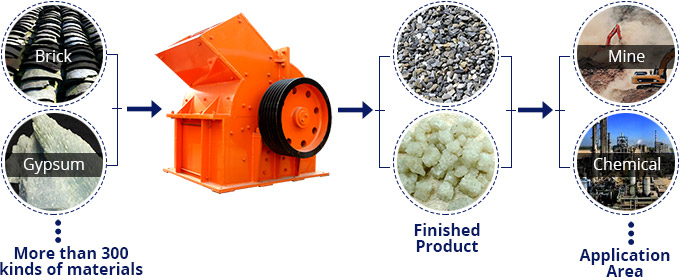

Hammer Crusher Processing Material

Property Features of the Hammer Crusher

1. Advanced design craft, high constitutive property and strong impact resistance;

2. Large amount of feeding size, high finished product ratio and pretty particle shape;

3. Super crushing ability, one step to coarse, secondary and fine crushing;

4. 30% increase of the production capacity, 20% reduction of needle-like and powdery products;

5. Chromium manganese alloy material of the hammer and sieve plate, stronger impact resistance and abrasive resistance;

6. Adjustment of the particle size according to the varying customers' needs.

Hammer Crusher

Main Application of Hammer Crushing Machine

The hammer crusher is suitable for materials with the medium hardness and less abrasiveness, whose compressive strength is less than 100 MPa and moisture content is no more than 15%, such as chalk, coal, salt, gypsum, bricks and limestone. With the advanced property and steady reliability, the hammer crushing machine is widely used in the cement, sand, coal, building materials, chemical, power, metallurgy, highway construction, and compound fertilizer industries for fine crushing of the medium hardness materials in the refractory plant, cement plant and glass plant. Besides its use in the crushing production line and sand making production line, to be the replacement of the cone crusher, the hammer mill crusher is also available for the beneficiation production line.

Fote Hammer Crusher

If you want to know our hammer mill crusher price, please send email to info@sinoftm.com or contact our online customer services.

Contact us

Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:

High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.


Technical Data

Specification Capacity(t/h) Power (kw)
PC 400×300 3-10 4P 11
PC 600×400 6-22 4P 22
PC 800×600 10-40 4P 55
PC 1000×800 15-50 4P 75
PC 1000×1000 18-75 4P 90
PC 1200×1200 22-95 4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Our Customer

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
