Mobile Cone Crusher

Mobile Cone Crusher

Online Service Connection < 60s, Email Reply Time < 24h

Processing capacity: 27-445t/h

Feeding size: 175-241mm

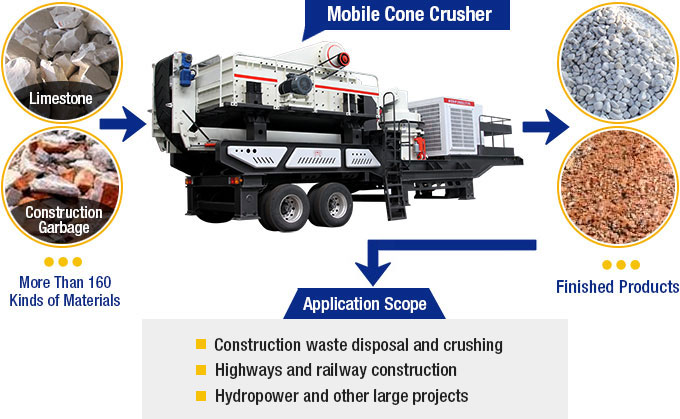

Application area: mining, coal, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites

Mobile Cone Crusher Working Video

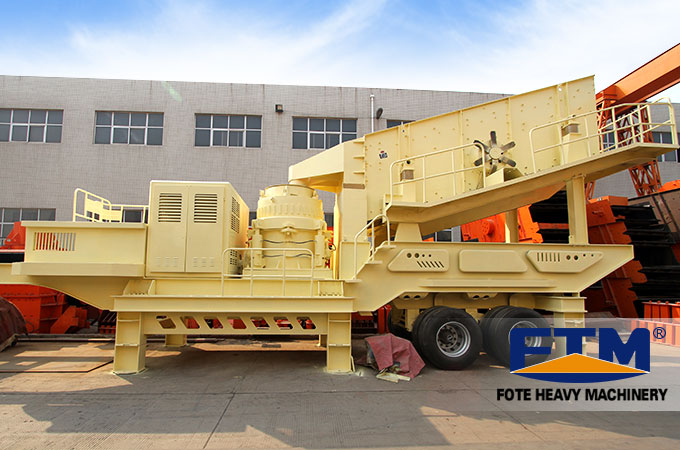

Introduction of Mobile Cone Crusher:

Mobile cone crusher is mainly composed of high-efficiency cone crusher, high-performance vibrating screen, belt conveyor, electro motor and control box. The whole unit installation and coordination operations fully embody its advantages of convenience and flexibility. Portable hydrocone crushing plant is widely used in the construction waste disposal and crushing, highways and railway construction, hydropower and other large projects.

Mobile cone crusher of Fote Machinery can be customized according to customer requirements. It is available to customize cone crusher, vibrating screen, motor and other equipment in strict accordance with the actual production sites. Mobile secondary cone crusher has strengths of large handling capacity, fine, intermediate and strong crushing with high efficiency and strong adaptability.

Mobile Cone Crusher Applications

Strengths of Mobile Cone Crushing Plant

1. High Quality Cone Crusher

Mobile cone crusher can be equipped with Symons cone crusher, spring cone crusher and hydraulic cone crusher developed by Fote Machinery according to the specific needs.

2. Superior Quality Circular Vibrating Screen

Circular vibrating screen of Fote Machinery combines the screening operation and uniform feeding function, largely improving the production capacity, reducing the equipment wastage and extending the equipment service life.

3. Vehicle Electronic Control Configuration

Vehicle electronic control configuration has strengths of station space saving and simple operation.

4. Scalable Adjustment Bracket

According to the ground level, station bracket is freely scalable to ensure the stable bodywork on the machine operation process.

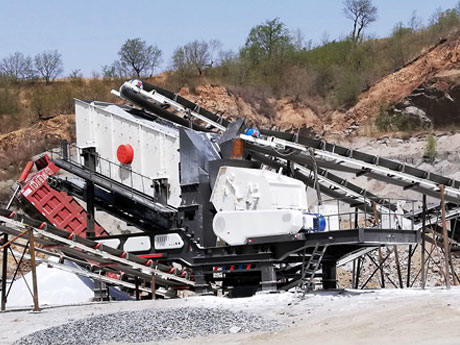

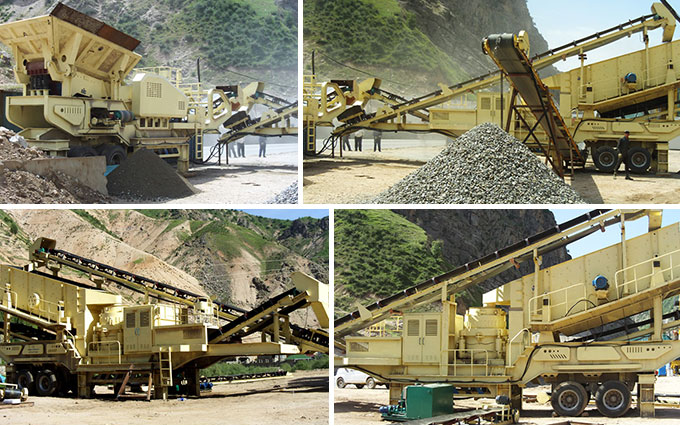

Mobile Cone Crusher Production Site

Mobile Cone Crusher Applications

Mobile cone crusher is mainly used in the fine crushing operations. In the sand material production processing, according to different stone properties and finished production use fields, cone crusher can be as the replacement of impact crusher to produce gravel products of higher hardness and higher fineness. What's more, the different crushing chamber adjustments of cone crusher expand the usage fields and application scope of mobile secondary cone crusher.

Mobile Cone Crusher

Extended Functions

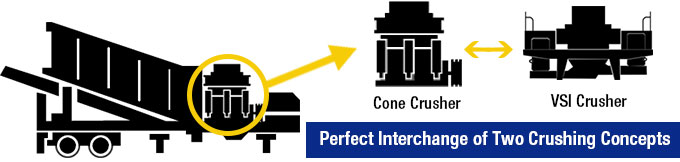

Interchange System of Cone Crusher and VSI Crusher

Interchange System of Cone Crusher and VSI Crusher

What you need invest is just the single equipment cost. In a short time, it realizes the interchange of different crushing units in the mining working site. The perfect match between the whole systems, wider application ranges and more comprehensive crushing functions all maximize the customers' benefits.

Fote Machinery that has mobile secondary cone crusher for sale now is a professional mining machine manufacturer. The affordable and reasonable portable hydrocone crushing plant price will bring you a perfect using experience.

Contact us

Our sales team is available to respond to any queries you might have on Fote. Get in touch using the details below:

High and New Industrial Zone, Kexue Revenue, ZhengZhou, China.


Technical Data

Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160

Our Customer

FTM has equipment installed throughout the world in are as such as South Africa, Middle East, West Asia,India, Philippines, Western Europe, Southeastern Asia.
